Angelfish Tank Setup: Size, Heat, and What Killed My First Pair
Height matters more than gallons, a heater is not always compulsory, and a tank has to be safe before it is watertight — three things I learned the slow way, starting with one built out of cement in 1990.
Nearly every angelfish setup guide in English is written from a temperate country by someone buying a glass tank off a shelf, and it shows in two of the standard answers. This guide covers the same ground — tank size and shape, filtration, heating, water parameters, aquascaping, and the order to do things in — but two of those answers here come from getting them wrong rather than from reading them somewhere. One is a tank I built out of cement in 1990 because I could not afford glass, which killed the first pair of angelfish I put in it and took me thirty years to understand. The other is that my tanks in Colombo ran for years with no heater at all, because the room was already at angelfish temperature and there was nothing to correct.
1. The Most Important Choice: Tank Size & Shape
Before buying a single piece of equipment, select the right aquarium. For angelfish, height is more important than length.
Why Tank Height Is Non-Negotiable
A standard Pterophyllum scalare can easily reach 8–10 inches in height, from the tip of its dorsal fin to the tip of its anal fin (the more majestic Altum can grow even taller). If the tank is too shallow, fins become cramped, leading to stunting, stress, and fin deformities. As a rule, tank height should be at least 20 inches (50 cm).
Minimum vs. Recommended Tank Size
- Absolute minimum (pair only): a 29-gallon "high" (30″ × 12″ × 18″) is the bare minimum for a single bonded pair. A standard 20-gallon long tank is completely unsuitable.
- Recommended (small group): a 55-gallon tank is the ideal starting point for a small group of 4–6 juveniles, providing critical vertical space and enough footprint for territories.
- Ideal (community/planted): 75 gallons or larger, giving superior water stability and far more flexibility with tank mates and aquascaping.
Always buy the tallest and largest tank you can afford and accommodate — it's the single best investment for your angelfish's health.
If you're building the tank yourself
The first tank I built, in 1990, I built out of cement because I couldn't afford glass. I was still a schoolboy, revising for my Ordinary Level exams, and a proper aquarium was simply beyond what I could spend. So it was cement on the bottom and three sides, with a single sheet of 5mm glass at the front to see through.
I sealed the edges with silicone and it leaked. I resealed it and it leaked again. I did this over and over, and eventually I gave up and left it alone. A few days later the leaking had stopped by itself. For more than thirty years I had no idea how.
The answer is a well-documented property of concrete called autogenous healing. Fresh cement is still full of unhydrated cement grains. Water seeping through a hairline crack reaches those grains, they hydrate for the first time, and the products of that reaction expand into the crack and choke it off. Alongside this, calcium hydroxide from the cement dissolves into the seeping water and reacts with dissolved carbon dioxide to precipitate calcium carbonate inside the crack — the same white crust you see on damp concrete walls. The effect only works on fine cracks, roughly a few tenths of a millimetre, which is why it fixes a weep and never a stream.
So the tank sealed itself, and giving up was accidentally the correct move.
Why the silicone never worked: silicone needs a clean, dry, non-porous surface to bond to. Fresh cement is damp, porous, and strongly alkaline — close to the worst case. The bead sat on the surface without adhering, and the water simply tracked around it through the body of the cement. The leak was never really at the joint, which is why sealing the joint harder never fixed it.
Then I killed the first fish I put in it. A pair of black angelfish, dead in under a week. An experienced keeper told me afterwards what I should have done: leave a cement tank standing full of water for weeks, and don't trust it with livestock until algae has started growing in it.
He was right, and the mechanism is worth spelling out. What leaches out of fresh cement is mostly calcium hydroxide, and it is caustic — it can push pH into double figures and drag carbonate hardness up with it. Two things then kill fish. The alkalinity itself damages gills and skin directly. And because the fraction of ammonia sitting in its toxic un-ionised form rises steeply with pH, any ammonia in a brand-new, uncycled tank becomes far more poisonous than the same test reading would be at pH 7. For a pair of angelfish in a fresh cement tank, under a week is about what you would expect.
That algae rule is better advice than it sounds. Algae won't establish on a surface that is still leaching hard, so it isn't what makes the tank safe — it's evidence that the leaching has finished. It's a living test kit, from a time when most hobbyists didn't have a real one.
If you build one today, the leak is the lesser problem. Cure it first: fill, soak and drain repeatedly over several weeks until the pH of the standing water stops climbing, or coat the interior with an aquarium-safe epoxy or pond sealant. Then cycle it as you would any tank. Never put fish into a freshly built cement tank — I did, and it cost me both of them.
2. Essential Tank Equipment
Filtration: The Gentle Flow
Angelfish come from the slow-moving, calm waters of the Amazon basin and aren't built for strong currents. Canister filters or high-quality hang-on-back (HOB) filters work well. If the output is too strong, "baffle" the flow with a sponge over the output or a spray bar pointed at the glass — the goal is gentle surface agitation for oxygen exchange, not a river current.
Heating: Warm and Stable
Ideal range is 78–82°F (25–28°C). Use an adjustable, submersible heater at roughly 3–5 watts per gallon — a 200–250 watt heater is ideal for a 55-gallon tank.
If you live in the tropics, you may not need a heater at all. Almost every angelfish guide in English is written from a temperate climate and treats a heater as compulsory. My tanks in Colombo ran unheated for years, because room temperature here sits in the high twenties Celsius all year round — which is simply angelfish temperature. There was nothing to correct.
The thing to understand is that a heater's job is holding a temperature steady, not making the water warm as such. If your room is already in range and doesn't swing much between afternoon and small hours, the heater has very little to do. If your room isn't, it has everything to do, and going without one is how you get the slow, unexplained losses that come from a tank cooling several degrees every night.
Check before you decide. Put a thermometer in the tank and read it over several days, including the coldest part of the night, and again in whichever season is coolest. Air conditioning, a monsoon cold snap, or a tiled floor can pull a tank down further than you would expect. A heater is cheap insurance even where it will spend most of the year idle — the point isn't that tropical keepers should skip it, it's that they shouldn't buy one on the assumption their water is cold when it isn't.
Lighting: Muted and Moderate
In nature, angelfish live under a canopy of dappled sunlight; bright, stadium-like lighting is a stress source. Choose adjustable or moderate-intensity lighting on an 8–10 hour photoperiod. Floating plants like Amazon Frogbit or Hornwort naturally diffuse bright light.
3. Water Parameters: Recreating the Amazon
You must cycle your tank before adding any fish — this establishes the beneficial bacteria that converts toxic ammonia and nitrite into less harmful nitrate. Skipping this step results in a toxic environment and will likely kill your fish.
- Temperature: 78–82°F (25–28°C) — stability matters more than a specific number.
- pH: 6.5–7.8. Captive-bred angels are adaptable; a stable pH beats chasing a "perfect" number.
- Hardness: 3–8 dKH, soft to moderate.
- Ammonia & nitrite: 0 ppm — any reading above 0 is an emergency.
- Nitrate: under 20 ppm, kept low with regular water changes.
A weekly water change of 25–30% is a healthy baseline for a properly stocked tank.

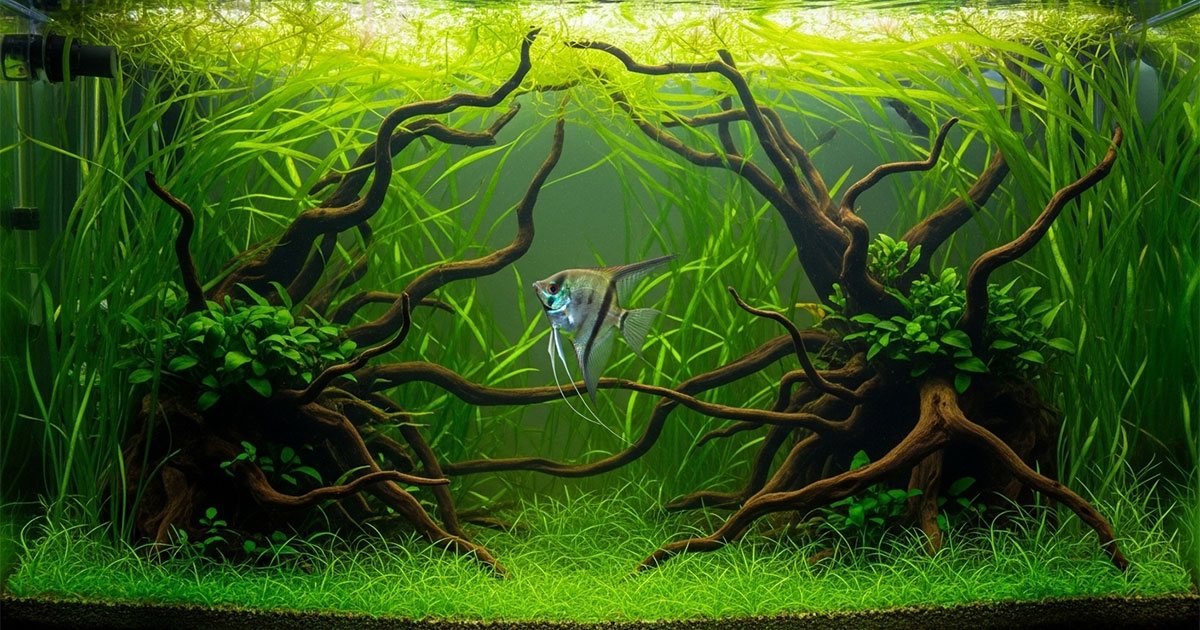

4. Aquascaping: A Functional Amazonian Home
A good aquascape isn't just decorative — it provides security, breaks up sightlines, and reduces aggression.
- Substrate: fine sand or very smooth, fine-grade gravel; avoid sharp, coarse gravel that can damage delicate ventral fins.
- Hardscape: tall, branching driftwood and vertical slate create natural "rooms" and territories. As cichlids, angelfish become territorial as they mature — tall decor breaks their line of sight, and a fish that can't see another angelfish from its "home base" is far less likely to be aggressive.
- Plants: Amazon Swords and Vallisneria for tall background cover, Anubias and Java Fern attached to driftwood for a lush midground, and floating plants like Amazon Frogbit or Hornwort to diffuse light from above. See our full plants guide for a complete list.
5. Step-by-Step Angelfish Tank Setup
- Clean & position: rinse the tank (no soap!), substrate, and decor; place on a level, sturdy stand away from direct sunlight and drafts.
- Install substrate & hardscape: add rinsed substrate, then arrange driftwood and rocks for your aquascape.
- Install equipment: place the heater and filter in the tank, but don't plug them in yet.
- Planting: plant live plants in the substrate and attach Anubias/Java Fern to the hardscape.
- Fill the tank: pour water into a bowl placed on the substrate to avoid disturbing your aquascape.
- Turn on & cycle: add dechlorinator, turn on the filter and heater, and begin a fishless nitrogen cycle by adding an ammonia source — this can take 2–6 weeks.
- Acclimate your fish: once fully cycled (0 ppm ammonia, 0 ppm nitrite, some nitrates), dim the lights and use drip acclimation over 45–60 minutes.
Common (and Costly) Setup Mistakes to Avoid
- Choosing a 20-gallon long: only 12 inches high — critically too shallow for adult angelfish.
- Creating a "vortex": powerful wavemakers or high-flow filters exhaust and stress gentle-swimming angelfish.
- Skipping the cycle: adding fish to an uncycled tank ("New Tank Syndrome") is a death sentence.
- Wrong tank mates: avoid fin-nippers like Tiger Barbs or very small fish like Neon Tetras. See our Tank Mates guide.
- Not quarantining: always quarantine new fish for 2–4 weeks to prevent introducing diseases like Ich.
Frequently Asked Questions
How many angelfish can I put in a 55-gallon tank?
A 55-gallon tank is ideal for a group of 4-6 angelfish. This allows them to establish a pecking order. Keeping only two or three often leads to one being singled out and bullied.
Can I keep just one angelfish?
Yes. A single angelfish can be a wonderful 'centerpiece' fish in a community tank (with appropriate tank mates) and will not be lonely. This is often better than keeping a pair that may not be bonded.
Do angelfish need a bubbler or an air stone?
Not necessarily. If your filter's output provides good, gentle agitation at the water's surface, that is all the oxygen exchange you need.
What is the best angelfish for a beginner?
Any of the common Pterophyllum scalare varieties (like Silver, Marble, or Koi) are excellent for beginners. Avoid the 'True' Altum Angelfish (P. altum), which is much more delicate and requires expert care.
